SIMPLE-SET WINDOW UNITS
Glazed and waterproofed steel windows that
install as easily as any other window
CORTEZ Simple-Set Window Systems are the quickest and most
hassle-free method of installing steel windows into your home.
They come from the shop pre-glazed and pre-fitted with a fully configurable flashing system that let’s them drop-in as quickly and as easily as any vinyl or wood window.
Pre-Glazed, Pre-Flashed
& Ready to Install
-
Single panel glass
Interior or exterior
Max sash size of 60 sqft.
-
Vertical Muntins Only
Interior or Exterior
Max sash size of 60 sqft
-
Grid configurable to specification
Interior or Exterior
Max sash size of 60 sqft.

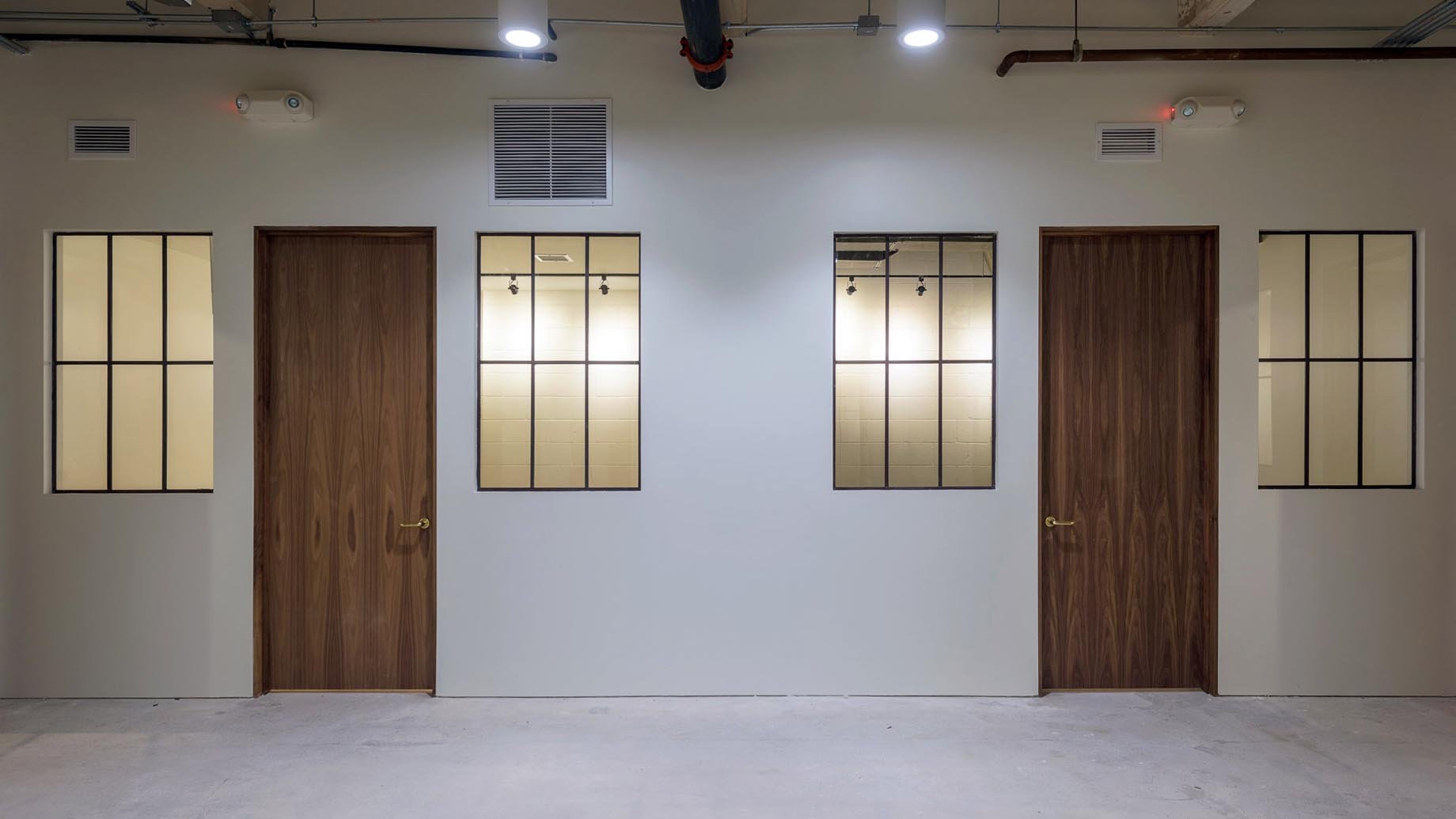

Undoubtedly one of the most elegant options when it comes to windows, the thin lines and open natural lighting of steel windows make it a highly desirable choice for any home or office. CORTEZ Simple-Set windows provide the benefit of steel windows while making the process as easy as possible.
Our pre-glazed units are designed for both interior and exterior, and can install onto a variety of conditions making it the most versatile and installer-friendly steel windows available.
Fast & Simple Installation
-

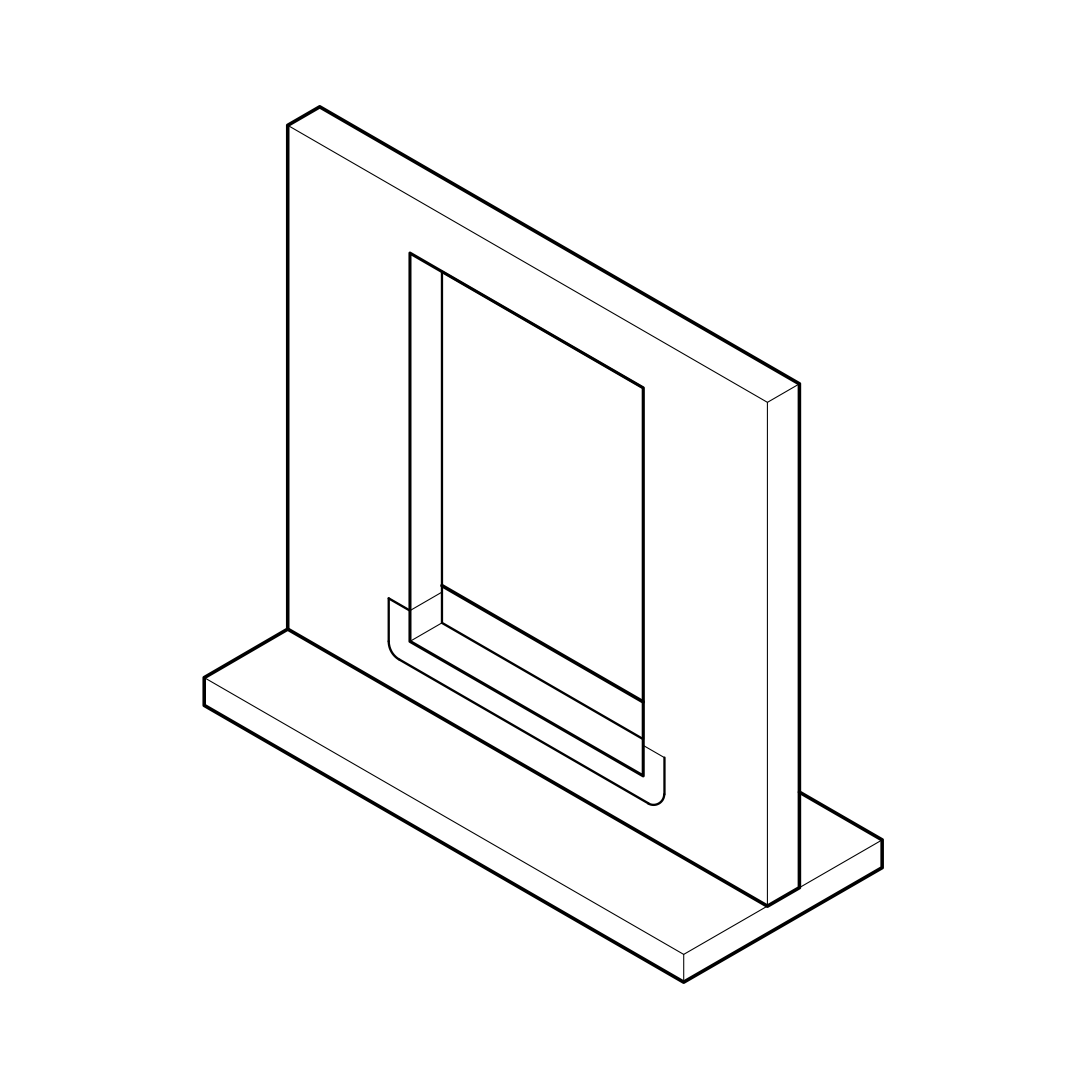

Prepare Opening
Flash bottom sill and up the sides 6-10 inches with adhesive flashing tape.
-
Set Window
Place window unit into opening, insert screw into one corner to hold in place.
-
Attach Window
Level window and adjust placement to desired position. Attach remaining screws.
-
Finish Sealing
Complete waterproofing with flashing tape. Start with sill, then sides and finish at header.
Fully Configurable Flashing System
The defining feature of the Simple-Set Window System is a fully configurable flashing system. Depending on the conditions of your opening, we can adjust the shape, dimensions and thickness of the flashing frame to support the architecture.
You can choose from 3 standard profiles: hidden, knife’s edge, or a box curb for an exact fit to the opening and surface finish.
This proprietary system comes pre-installed on the window sash and punched with adjustable screw slots. This allows the window to drop in quickly and easily, and can be installed into openings that are not perfectly level or plumb.
